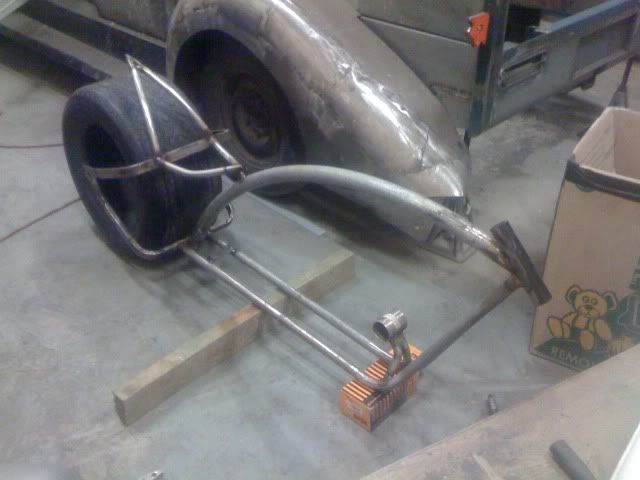

As of this morning, this is what NBWS looked like.

Posted Image

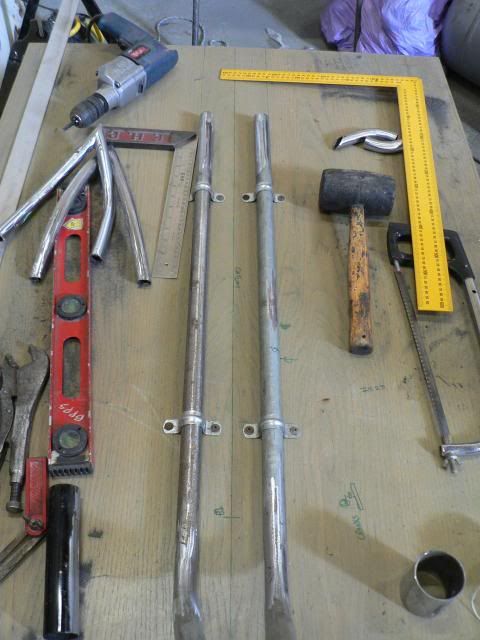

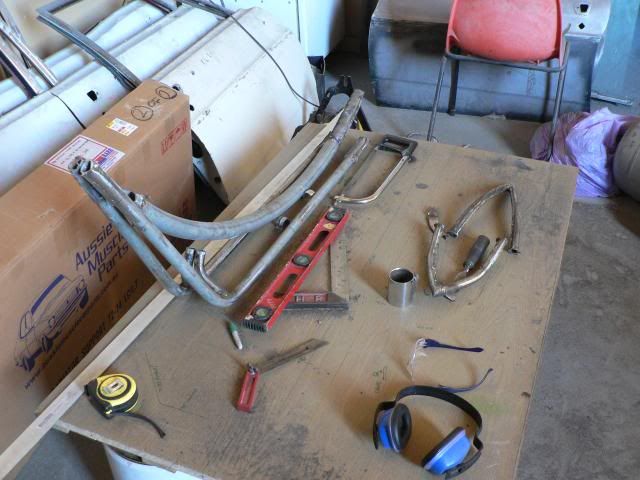

Big bro came back down after lunch and got stuck into cleaning all the welds back so I had fresh smooth steel to work with this arvo.

Posted Image

Posted Image

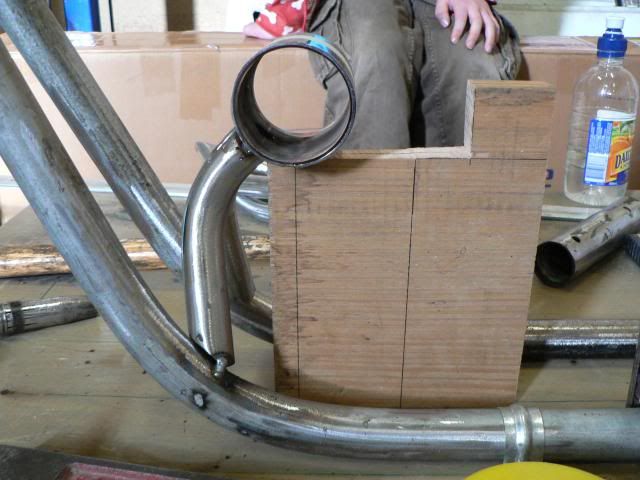

I made up a small jig to hold the crank tube in place while I attached the holding tubes in their new location.
Ed approves of the new location by the looks lol

Posted Image

Posted Image

Have to order some tube tomorrow and have it bent to suit the rear wheel cradle width.
I'm also going to flatten the front 250mm of the centre bar because the new front filler section I photo shopped in makes the top bar look rounder than it really is.
Hopefully more pics to come sooner rather than later.

Posted Image

If at first you don't succeed .... Fcuk it, go to the pub!


#123 slydog

slydog
  • Platinum Member
  • PipPipPip
  • 13530 posts
  • Reputation: 11524
  • Location:wagga wagga
  • State:NSW
  • Car:Your wife

Posted 14 September 2011 - 08:30 PM

Hell yeah boi chop it up...LOL

Slydog

#124 xm-221

xm-221
  • Platinum Member
  • PipPipPip
  • 8724 posts
  • Reputation: 13024
  • Location:Portarlington
  • State:QLD
  • Car:XE Eclipse

Posted 28 September 2011 - 08:41 PM

Chop it up, weld it back together, story of my life Rob :yelrotflmao:

Seeing as I have to be out of the workshop in 2 days time I thought I better make a move on this before it gets stuck in the shed until god knows when.

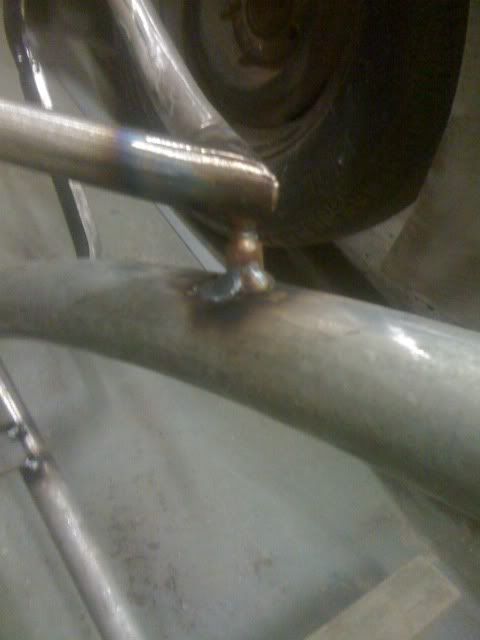

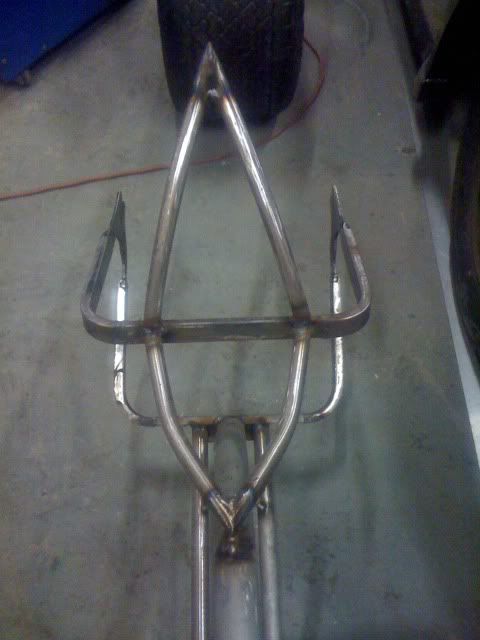

I mocked the wheel back up and held a bit of bent tube up beside it to see what the new rear cradle was going to look like ... and shyte it was! So I ended up replacing the upper and lower front tubes because they were a bit mangled from the "chopping out" process. Then welded it back to the frame, and widened the seat frame a bit to suit.

Posted Image

With wheel mocked back into position.

Posted Image

I've always had a 1/4 drive 4mm socket that has never been used before, so I decided to use it on NBWS :hihi:

Posted Image

Please excuse the crappy iPhone pics but it's all i had at work today as I forgot to take the camera for once.

Posted Image

If at first you don't succeed .... Fcuk it, go to the pub!


#125 slydog

slydog
  • Platinum Member
  • PipPipPip
  • 13530 posts
  • Reputation: 11524
  • Location:wagga wagga
  • State:NSW
  • Car:Your wife

Posted 28 September 2011 - 08:46 PM

Loving it bro,looks awesome as usual from you...

Slydog

#126 xm-221

xm-221
  • Platinum Member
  • PipPipPip
  • 8724 posts
  • Reputation: 13024
  • Location:Portarlington
  • State:QLD
  • Car:XE Eclipse

Posted 28 September 2011 - 09:06 PM

The inspiration is all yours mate, I'm just refining it a bit ;)

Posted Image

If at first you don't succeed .... Fcuk it, go to the pub!


#127 xm-221

xm-221
  • Platinum Member
  • PipPipPip
  • 8724 posts
  • Reputation: 13024
  • Location:Portarlington
  • State:QLD
  • Car:XE Eclipse

Posted 30 September 2011 - 07:59 PM

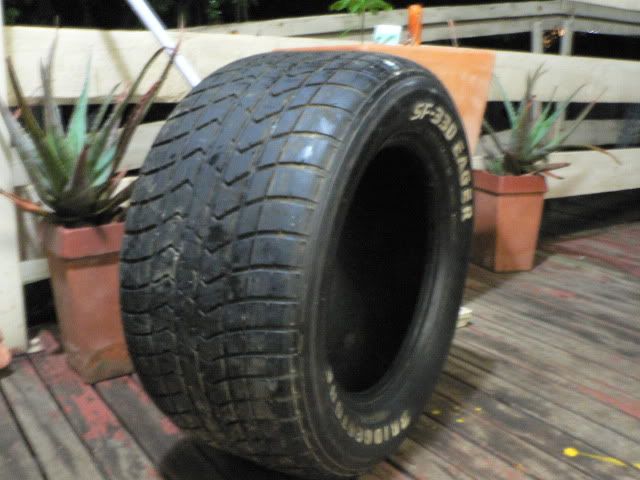

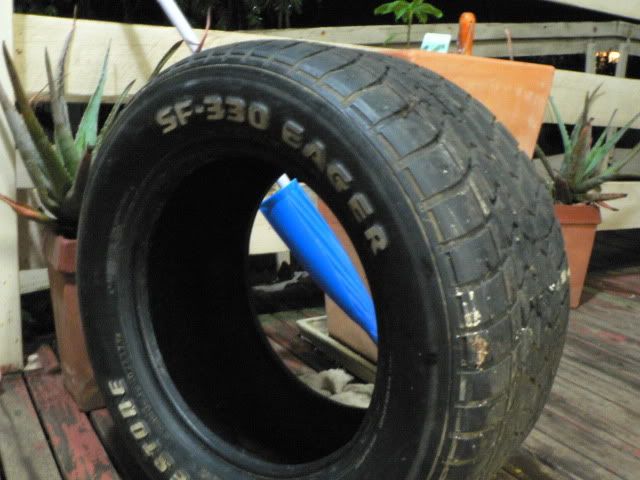

New rear tyre turned up this arvo.
